High-Precision Aluminum Alloy Single Point Load Cell For Parallel Weighing Systems WL-117 Heavy-Duty 50-500kg Capacity

Brand Name : Brans

Model Number : WL-117

Place of Origin : China

MOQ : 1 pc

Payment Terms : T/T

Supply Ability : 800pcs/Month

Delivery Time : one week

Capacity : 50/100/150/200/250/300/400/500kg

Combined Error : 0.015%F.S.

Non-linearity : 0.02%F.S.

Repeatability : 0.015%F.S.

Rated Output : 2.0±0.05mV/V

Zero Balance : ±0.02%mV/V

Insulation Resistance : ≧5000MΩ/100VDC

Material : Aluminum Alloy

Safe Overload : 150%F.S.

Protection Class : IP65 (Customizable)

Operation Temp. : -30~70°C

Cable Size : Ф5x3000mm (Customizable)

Contact Now

Features & Applications


    1. The WL-117 is built with a high-strength Single Point Load Cell constructed from durable aluminum alloy.

    2. This heavy-duty single point load cell supports maximum capacities from 50kg to 500kg for robust industrial weighing.

    3. Designed for exceptional accuracy, this load cell offers high precision with optional C3/C4 accuracy grades.

    4. Featuring excellent consistency in rated output, multiple units of this single point load cell can be reliably used in parallel configurations.

    5. This versatile single-point load cell is mainly used in electrical scales, bench scales, pricing scales, and other industrial weighing systems.


Specifications

Capacity 50/100/150/200/250/300/400/500kg
Combined Error 0.015%F.S.
Non-linearity 0.02%F.S.
Repeatability 0.015%F.S.
Rated Output 2.0±0.05mV/V
Zero Balance ±0.02%mV/V
Insulation Resistance ≧5000MΩ/100VDC
Recommended Excitation 5~15VDC
Material Aluminum Alloy
Safe Overload 150%F.S.
Protection Class IP65(Customizable)
Operation Temp. -30~70°C
Cable Size Ф5x3000mm(Customizable)

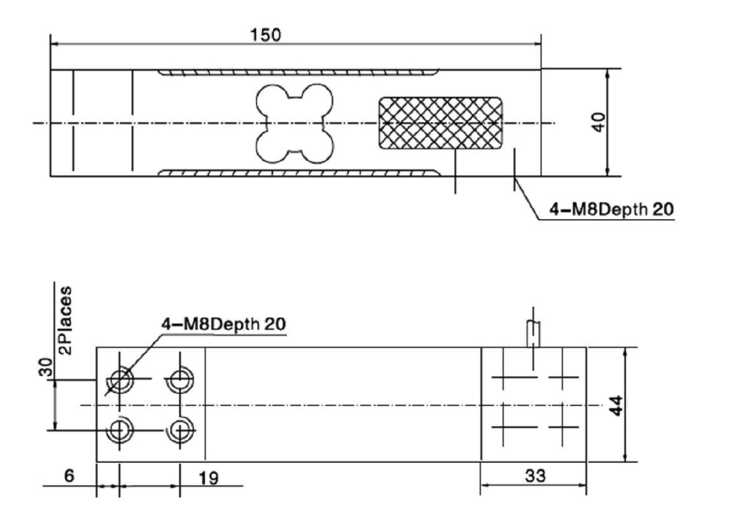

Dimensions(mm)

High-Precision Aluminum Alloy Single Point Load Cell For Parallel Weighing Systems WL-117 Heavy-Duty 50-500kg Capacity


Load direction


High-Precision Aluminum Alloy Single Point Load Cell For Parallel Weighing Systems WL-117 Heavy-Duty 50-500kg Capacity



Wiring code

High-Precision Aluminum Alloy Single Point Load Cell For Parallel Weighing Systems WL-117 Heavy-Duty 50-500kg Capacity



Shipping & Packaging

To ensure safe arrival at your location, the load cell will be carefully packaged and shipped. The packing process is as follows:

1. The load cell will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the load cell from moving during shipping.
3. The load cell will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4. Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.


Once the package is shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the delivery address to receive the package to avoid any delays or problems.
